Specifications

  • Compatible Laser Wavelengths: 450 to 10600 nm
  • Compatible Laser Modes: Continuous or Pulsed
  • Maximum Average Power: 40 Watts CO2, 30Watts Nd:YAG, KTP
  • Microscope Compatibility: Leica, Zeiss and all the most popular microscopes
  • Safety Compliance: EN60601-1, EN60601-2-22, EN60825-1
  • Dimensions: 11" (28 cm) Depth x 3" (7.6 cm) Width x 2.25" (5.7 cm) Height
  • Weight: 1.4 lbs. (0.63 kg)

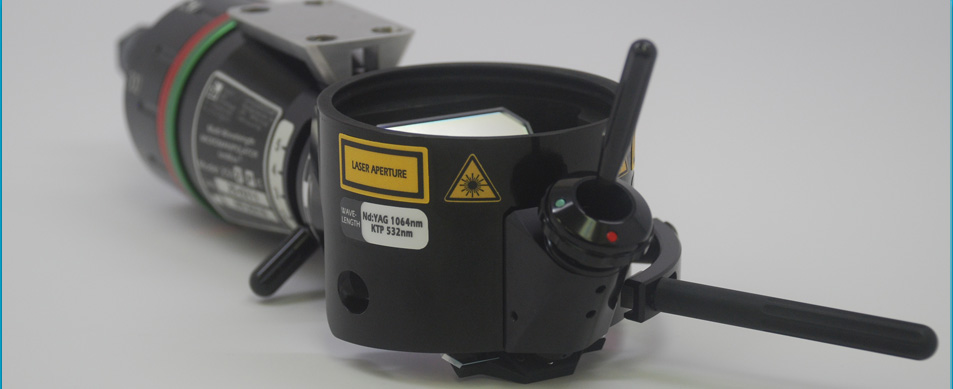

Standard with each UniMax Micromanipulator are the following items:

  • Universal Hand Stabilizer
  • Laser Adapter to fit to all of the most popular lasers
  • Microscope Adapter to fit to all of the most popular microscopes
  • Beam Alignment Indicator
  • Laser Beam Collimator (If laser is fiber delivered)
  • Operating Manual
  • Troubleshooting guide
  • Storage/carrying case
