Applications

All UniMax models take advantage of large precision gimbaled mirrors with dynamic controllers. These qualities make them ideal for the newest large diameter objective lens microscopes. As first to utilize large gimbaled mirrors, the UniMax line of micromanipulators continue to showcase the latest technology with innovate designs, long working distances and the smallest adjustable spot sizes. For applications where precision is required, the availability of the smallest spot size is critical.

UniMax 2000EWD

For CO2 lasers operating at 10600 nm, the UniMax 2000EWD provides the longest working distance on the market (225-500 mm) combined with the smallest spot sizes (0.150 to 0.110 mm).

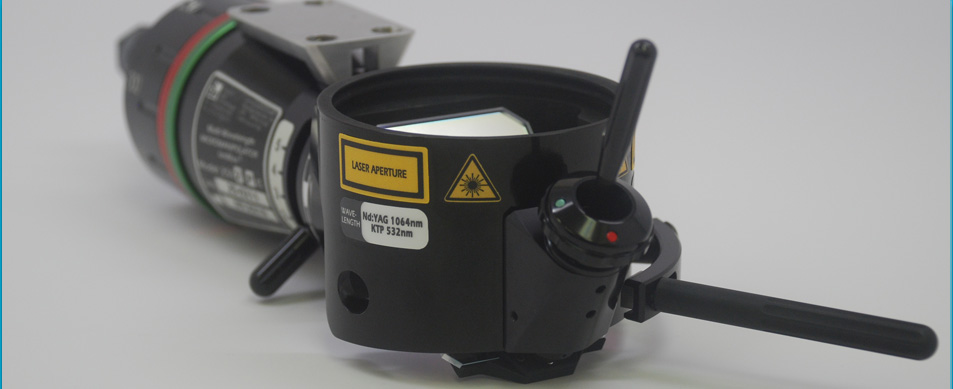

UniMax 2502EWD

For lasers operating at 532 and 1064 nm, the UniMax 2502EWD is the only mirror-based micromanipulator for KTP (532 nm) lasers. This model also provides the longest working distance on the market (225-500 mm) combined with the smallest spot sizes for fiber delivered lasers (0.420 to 0.220 mm).

UniMax 3000SWD

For multiple lasers operating from 450 to 10600 nm the UniMax 3000SWD utilizes an innovative off-set mirror design which removes the mirror from the field–of-view while providing a narrow angle of incidence. This design eliminates the artifacts that can occur with a mirror in the field of view. The SWD represents a short working distance of 200-300 mm combined with the smallest spot sizes (0.130 to 0.105 mm).

Multi-Specialty Applications:

  • Otolaryngology (ENT)
  • Neurosurgery
  • Gynecology (GYN)
  • General Surgery
  • Aesthetic (Dermatology and Plastic Surgery)
  • Dental and Oral Surgery
  • Genitourinary (Urology)
  • Orthopedics and Arthroscopy
  • Thoracic Surgery
  • Podiatry
